Effects of posterior lumbar nonfusion surgery with isobar devices versus posterior lumbar interbody fusion surgery on clinical and radiological features in patients with lumbar degenerative diseases: a meta-analysis
Journal of Orthopaedic Surgery and Research volume 17, Article number: 116 (2022)
The aim of this study was to systematically evaluate the efficacy of posterior lumbar isobar nonfusion with isobar devices versus posterior lumbar interbody fusion (PLIF) in the treatment of patients with lumbar degenerative diseases (LDDs).
Materials and method
We performed a literature review and meta-analysis in accordance with the Cochrane methodology. The analysis included a Group Reading Assessment and Diagnostic Evaluation assessments, Jadad Quality Score evaluations, and Risk of Bias in Randomized Studies of Interventions assessments. The PubMed, Ovid, EMBASE, Web of Science, MEDLINE, CNKI, VIP and WanFang databases were searched to collect and compare relevant randomized controlled trials and cohort studies of isobar nonfusion and PLIF in the treatment of lumbar degenerative diseases. The retrieval time was from database inception to June 2021. Two evaluators independently screened the literature, extracted data, and evaluated the quality of the included studies. Outcome measures of interest included low back pain, disability, and radiological features. The protocol for this systematic review was registered on INPLASY (2021110059) and is available in full on inplasy.com (https://inplasy.com/inplasy-2021-11-0059/).
Of the 7 RCTs, 394 patients met the inclusion criteria. The meta-analysis results showed that isobar nonfusion surgery shortened the surgical duration (P = 0.03), reducing intraoperative bleeding (P = 0.001), retained the ROM of surgical segment (P < 0.00001) and the ROM of the lumbar spine (P < 0.00001), and reduced the incidence of ASD (P = 0.0001). However, no significant difference in the postoperative ODI index (P = 0.81), VAS score of LBP (P = 0.59, VAS score of lower limb pain (P = 0.05, and JOA score (P = 0.27) was noted.
Posterior lumbar nonfusion surgery with isobar devices is superior to PLIF in shortening the surgical duration, reducing intraoperative bleeding, retaining the ROM of surgical segments and the lumbar spine to a certain extent, and preventing ASD. Given the possible publication bias, we recommend further large-scale studies.
Lumbar fusion surgery is not only the gold standard therapy for lumbar degenerative diseases (LDDs) after failed conservative nonsurgical treatment for at least six months, but also a classic clinical surgical treatment in spinal surgery . It can effectively relieve the symptoms of nerve root compression, reconstruct the spinal sequence, and strengthen spinal stability. Lumbar interbody fusion changes the normal biomechanical environment of the surgical segment, which causes stress concentration and accelerates the degeneration of adjacent segments. Complications, such as adjacent segment disease (ASD), have received increasing attention . Dynamic fixation and nonfusion techniques provide stability of surgical segments and retain a certain degree of lumbar mobility, which hopefully reduce the increase in compensatory activity and stress of adjacent vertebrae, to reduce the incidence of ASD. The isobar system (Scient,X) is a semirigid pedicle screw fixation system that can provide relatively flexible three-dimensional control and be clinically applied to fusion surgery to stimulate bone growth, shorten the fusion time, dynamically protect segments adjacent to rigid surgically fused segments and nonfusion dynamic fixation to reduce the pressure on intervertebral discs and facets of adjacent segments, and retain the range of motion (ROM) of the surgical segment and the lumbar spine . Recently, many reports on the clinical efficacy of isobar system fusion surgery have been published, and a meta-analysis showed that PLIF with the isobar system has some advantages in improving ODI, JOA and VAS scores compared with traditional titanium rods . However, systematic reports on the clinical efficacy of isobar nonfusion surgery versus traditional posterior lumbar interbody fusion (PLIF) are limited. Therefore, this study collected relevant studies comparing the postoperative efficacy of isobar nonfusion surgery versus PLIF in the treatment of lumbar degenerative diseases, screened the literature according to strict inclusion and exclusion criteria, and extracted relevant data for meta-analysis. We aimed to compare the surgical duration, intraoperative bleeding, preoperative and postoperative low back pain, leg pain and clinical function. Postoperative radiological changes were compared, including surgical segment ROM and lumbar ROM, and we also summarized the number of postoperative ASD cases. By systematically evaluating the efficacy of the two surgical methods, we hope to provide an evidence-based medical basis for the clinical treatment of lumbar degenerative diseases.
This meta-analysis was performed in accordance with the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) statement  and the Cochrane Handbook . Ethical approval was not required since this is a meta-analysis of published studies.
Inclusion and exclusion criteria
To qualify for inclusion, studies had to be a randomized controlled trials (RCTs) comparing both isobar nonfusion surgery versus PLIF surgery in the treatment of lumbar degenerative diseases and clinical and radiological outcomes directly that differed only in surgical methods. The subjects included patients with lumbar degenerative diseases, including lumbar instability, lumbar disc herniation, lumbar spondylolisthesis, lumbar spinal stenosis, etc. The patients had obvious symptoms of low back pain, which were diagnosed by CT or MRI, and had been treated conservatively for at least 6 months. Studies of individuals who underwent procedures involving other instruments (e.g. Dynesys, N-Flex, an interspinous device, and/or GRAF) were not eligible. Biomechanical studies, single-arm studies, literature reviews, case reports, dissertations and conference summaries were also eligible.
Referring to the search strategy of the Cochrane assistance network, we searched the PubMed, Ovid, EMBASE, Web of Science, MEDLINE, China National Knowledge Internet (CNKI), VIP and Wanfang databases from inception to June 2021. The subject words, free words, and combinations of the two were used. The following search terms were used: “isobar device”, “isobar TTL”, “isobar semirigid device”, “isobar dynamic stabilization device”, “lumbar degeneration”, “nonfusion”, “lumbar dynamic fixation”, “isobar dynamic fixation”, “isobar TTL dynamic fixation”, and “spinal nonfusion surgery” with the Boolean operators AND or OR. At the same time, we traced the references of the included literature, and the meta-analysis related to this research, screened, and evaluated the references to determine potentially eligible articles.
Literature screening and data extraction
Two researchers conducted the literature search; and strictly followed the inclusion and exclusion criteria for the preliminary screening and secondary screening of the literature. After screening, two independent researchers extracted data from the literature that met the requirements and then the data were reviewed by a third researcher. Regarding any differences in the included literature, a consensus was reached through discussion among all researchers. The missing data in the literature were obtained by contacting the authors by e-mail. The main data extracted in this study included the name of the first author, year of publication, sample sizes of the experimental group and the control group, sex ratio of patients, average age, intervention methods, surgery for lesions, language, follow-up time, and outcome indicators. The extracted data were reviewed to ensure accuracy.

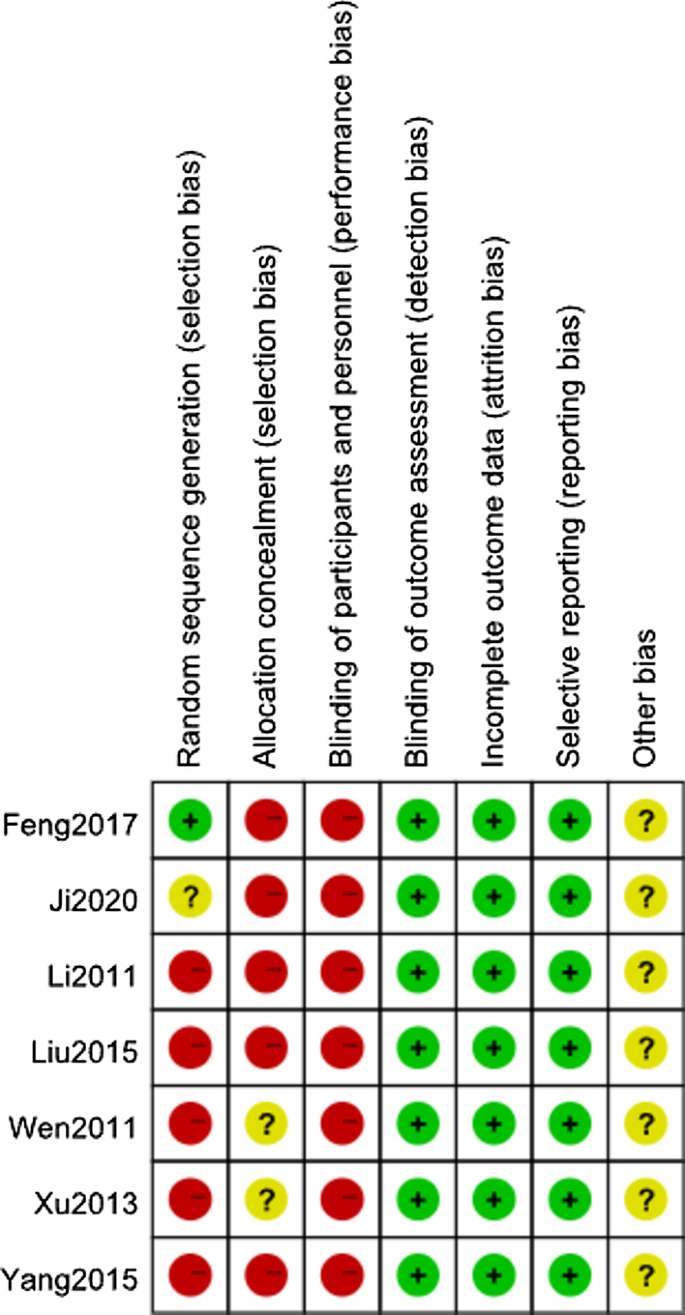

This study used the Cochrane risk bias tool  for quality evaluation. This tool includes evaluations in seven aspects: random sequence generation, allocation hiding, blinding of participants and implementers, blinding of outcome evaluators, incomplete outcome data, selective reporting, and other biases. The risk of bias in each area was judged as low, high, or unclear. The quality of the studies was evaluated by two researchers.
All statistical tests were performed using Review Manager 5.3 software (The Cochrane Collaboration), and the results were represented by a forest map. Heterogeneity tests were conducted during data consolidation. If no obvious heterogeneity was identified among the data (I2 ≤ 50%), a fixed-effects model was used to consolidate the data. When heterogeneity was observed (I2 > 50%), a random-effects model was used. If the heterogeneity could not be eliminated, a random-effects model was used for descriptive analysis of obvious clinical heterogeneity. The measurement data are expressed as the mean difference (MD) and its 95% confidence interval (CI); odds ratio (or) was used as the efficacy analysis statistic. All tests were 2-sided, and any p value less than 0.05 was deemed significant. We assessed publication bias by visual inspection of funnel plots.
Search results and quality evaluation

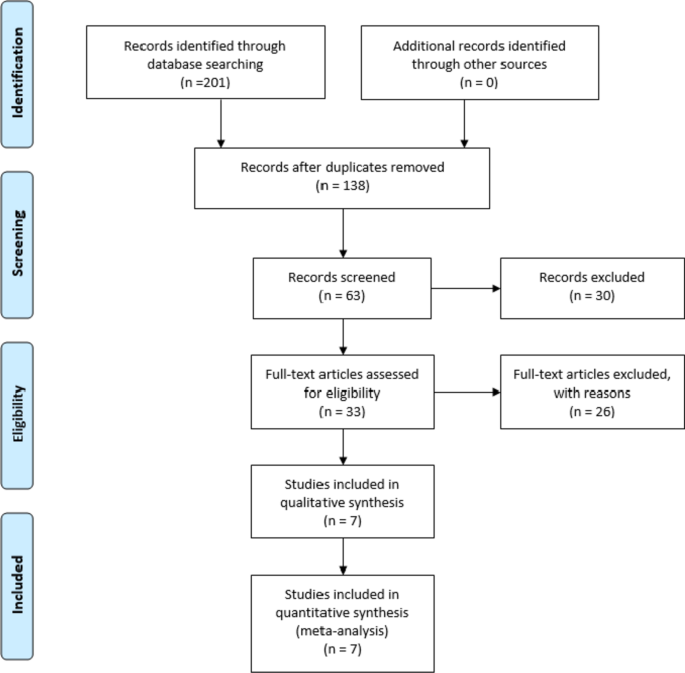

A total of 201 relevant studies were obtained through a preliminary search, including 66 from PubMed, 12 from Ovid, 13 from EMBASE, 10 from Web of Science, 10 from MEDLINE, 46 from CNKI, 24 from VIP and 68 from WanFang. After eliminating duplicate studies, reading topics and abstracts and full-text re screening, 7 RCT studies [8,9,10,11,12,13,14] with 394 patients were finally included. The literature screening flow diagram is shown in Fig. 1, and the basic characteristics of the included studies are shown in Table 1.
The specific databases searched, and the number of documents retrieved from each database are as follows: PubMed (n = 66), Ovid (n = 12), EMBASE (n = 13), web of science (n = 10), MEDLINE (n = 10), CNKI (n = 46), VIP (n = 24), WanFang Data (n = 68).
Due to the particularity of surgical treatment and ethical requirements, the patients’ right to know and personal will must be fully respected when grouping, so neither the patient nor the surgeon can implement blinding. Therefore, the included three studies were high risk in terms of randomization, allocation concealment, and blinding of participants and personnel. None of the seven studies withdrew or was lost to follow-up, and the data were complete. Quality assessment is shown in Fig. 2.
Comparison of the surgical duration for isobar nonfusion and PLIF
Six studies [8,9,10,11, 13, 14] reported the surgical duration and intraoperative bleeding of the two methods. The results of meta-analysis of random effect model showed that there was significant difference in surgical duration between isobar group and PLIF Group [MD = − 34.69; 95% CI: (− 66.42, − 2.96); P = 0.03]. (Table 2, Fig. 3).
Comparison of the intraoperative bleeding for isobar nonfusion and PLIF
Six studies [8,9,10,11, 13, 14] reported the intraoperative bleeding of the two methods during the operation. The results of meta-analysis of random effect model showed that there was a significant difference in the intraoperative bleeding between isobar group and PLIF Group [MD = − 124.57; 95% CI (− 200.48, − 48.65); P = 0.001] (Table 2, Fig. 4).
Comparison of the Oswestry Disability Index (ODI) scores for isobar nonfusion and PLIF
Five studies [8, 10,11,12, 14] reported the changes of ODI after approximately 24 months of follow-up. The meta-analysis results of fixed effect model showed that there was no significant difference between isobar group and PLIF group in improving postoperative ODI [MD = − 0.11; 95% CI (− 1.05, 0.82); P = 0.81] (Table 2, Fig. 5).
Comparison of the visual analogue scale (VAS) scores for low back pain (LBP) for isobar nonfusion and PLIF

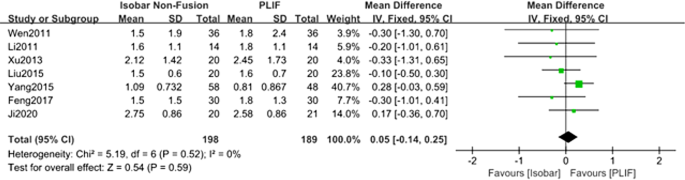

Seven studies [8,9,10,11,12,13,14] reported the compared VAS scores of postoperative of low back pain after approximately 12 months of follow-up. The meta-analysis results of fixed effect model showed that there was no significant difference between isobar group and PLIF group in improving vas of postoperative low back pain [MD = 0.05; 95% CI (− 0.14, 0.25); P = 0.59].(Table 2, Fig. 6).
Comparison of the visual analogue scale (VAS) scores for lower limb pain for isobar nonfusion and PLIF
Two studies [8, 10] reported the changes of vas in lower limb pain after approximately 24 months of follow-up. The meta-analysis results of fixed effect model showed that there was no significant difference between isobar group and PLIF group in improving vas in lower limb pain [MD = − 0.29; 95% CI (− 0.59, − 0.01); P = 0.05] (Table 2, Fig. 7).
Comparison of the Japanese Orthopaedic Association (JOA) scores for isobar nonfusion and PLIF
Two studies [9, 13] reported the improvement of JOA after approximately 12 months of follow-up. The fixed effect model meta-analysis showed that there was no significant difference between isobar group and PLIF group in improving postoperative JOA [MD = 0.38; 95% CI (− 0.29, 1.06); P = 0.27] (Table 2, Fig. 8).
Comparison of the changes of surgical segment ROM for isobar nonfusion and PLIF
Three studies [8, 10, 14] on imaging indexes reported the changes of surgical segment ROM after approximately 24 months of follow-up. The meta-analysis results of fixed effect model showed that the retention of surgical segment ROM in isobar group was significantly higher than that in PLIF group, and the difference between the two groups was statistically significant [MD = 7.75; 95% CI (7.35, 8.16); P < 0.00001] (Table 2, Fig. 9).
Comparison of the changes of lumbar ROM for isobar nonfusion and PLIF
Four studies [10,11,12, 14] reported the changes of lumbar ROM after approximately 24 months of follow-up. The meta-analysis results of fixed effect model showed that the postoperative lumbar ROM in isobar group was significantly greater than that in PLIF group, and the difference between the two groups was statistically significant [MD = 7.95; 95% CI (6.37, 9.54); P < 0.00001] (Table 2, Fig. 10).
Comparison of the number of postoperative ASD case for isobar nonfusion and PLIF
Five studies [8, 9, 11, 13, 14] reported the number of postoperative ASD case after two types of operation after approximately 12 months of follow-up. The results of meta-analysis of fixed effect model showed that the number of postoperative ASD case after isobar nonfusion was significantly higher than PLIF [OR 0.14; 95% CI (0.01, 0.46); P = 0.0001] (Table 2, Fig. 11).
The number of postoperative ASD case is the common outcome index of five studies [8, 9, 11, 13, 14], and it is also the main indicator for evaluating the two groups. Therefore, this outcome index was used to make a funnel plot to detect publication bias, as shown in Fig. 12. Visual inspection of the funnel plots showed symmetry, suggesting that there was no publication bias.
The heterogeneity of surgical duration (I2 = 98%), intraoperative bleeding (I2 = 98%) and surgical segment ROM (I2 = 97%) is high. The included literature is excluded one by one, and the remaining literature is combined to show high heterogeneity, indicating that the results of this meta-analysis are reliable, and the heterogeneity may be related to operation technology of surgeons, postoperative nursing measures in the hospital and the psychological character of patients.
GRADE evidence quality evaluation
The intraoperative bleeding, lumbar ROM, and the number of ASD case were high-level evidence quality. Surgical duration, ODI, VAS score for LBP and surgical segment Rom were moderate-level evidence quality. Vas score for LBP and JOA score were low-level evidence quality. It indicates that this result still needs to be further confirmed by higher quality RCTs, as shown in Table 3.
Since Albee and Hibbs used spinal fusion surgery to treat spinal deformity in 1911, spinal fusion surgery has been widely used in the treatment of LDDS. PLIF, as a classic operation for the treatment of lumbar degenerative diseases, can effectively relieve nerve roots compression and strengthen the stability of the lumbar spine, but it causes some complications, such as accelerated degeneration of adjacent segments of the intervertebral disc, decreased lumbar mobility, chronic LBP, and lower limb pain . Currently, as clinicians have deepened their understanding of degeneration of the adjacent segment of the fusion zone and ASD, they have realized that the change in the stress transmission mode of the diseased lumbar segment rather than the magnitude of the stress is an important factor in the LBP caused by degeneration of the lumbar spine . Therefore, we infer that LBP is not always proportional to the degree of lumbar degeneration. Isobar devices were first developed from isolock abd were designed by French Albert Aiby in 1993. The concept is to obtain physiological fusion by interbody bone graft fusion and rigid fixation with a pedicle screw system at the fusion segment. This device is used at the upper adjacent vertebral segment of the fusion segment, to form a dynamic “transition zone” between the fusion segment and the normal segment, which is conducive to recovering lumbar lordosis and restoring normal mechanical conduction to prevent or slow the incidence of ASD. Gilles Perrin applied the device to the fixation and fusion of spondylolysis segments for the first time . During the operation, the fixation device was placed in the upper adjacent segments to prevent ASD. The retrospective study with an average follow-up of 8.27 years obtained satisfactory results. Among them, the fusion rate of the surgical segments was 95%, while the compensatory activity of the adjacent segments was shared by the fixation device. Only one case had obvious ASD after the operation, and no revision cases due to internal fixation failure were reported. Subsequently, the device was improved by Scient,X Company in 1997 and renamed the TTL system. The system is composed of a titanium rod with a diameter of 5.5 mm and a microjoint. A microjoint is composed of a titanium ring with strong wear resistance, which can provide ± 0.2 mm axial displacement and ± 2° flexion and extension activity. The rod is a prebending rod with an 8° forward flexion angle, which is in line with the normal stress transmission and mechanical environment between vertebral bodies. However, the activity retained by the TTL system is too small, and controversy about whether it can prevent ASD remains . Since the clinical application of isobar nonfusion surgery, many scholars have reported its clinical efficacy. In terms of surgical details, isobar nonfusion surgery can effectively shorten the surgical duration and reduce the intraoperative bleeding compared with PLIF. This view has been widely recognized, and this approach also yields high patient satisfaction [18,19,20,21,22]. However, ongoing debates concern improving postoperative lumbar function, alleviating pain symptoms, and preserving surgical segment ROM and lumbar ROM . Nevertheless, no meta-analysis has explored the efficacy of isobar nonfusion surgery and PLIF in the treatment of lumbar degenerative diseases.
The results of the meta-analysis of operation showed that isobar nonfusion surgery had statistical advantages over PLIF in shortening the surgical duration and reducing intraoperative bleeding, which was also the same as the conclusion of some retrospective cohort studies. The main reasons for our results may be as follows. First, the overall operation steps of PLIF are cumbersome. During the operation, the cartilage must be completely removed to expose the endplate. At the same time, bone grafting and interbody fusion cage need to be placed. However, isobar nonfusion surgery does not require bone grafting and fusion. Only the free detached nucleus pulposus tissue was explored and removed, and the inclusive and prominent intervertebral disc that did not compress the nerve root was retained. The intervertebral space of the operative segment was preserved as much as possible, and the isobar device did not require the metal connecting rod used in the PLIF operation; it can be fixed only by placing a PDS and titanium rod with a microjoint, which is easy to install. Second, a large amount of bleeding occurs during PLIF, which is related to the long operative time of PLIF, and the cartilage plate must be completely removed during the operation, which will also cause blood seepage between vertebral bodies. Considering the high heterogeneity and possible publication bias of the included studies, we tried to contact the corresponding authors of these studies to obtain more detailed data for subgroup meta-analysis, but we did not receive a reply. Therefore, we analysed the heterogeneity, which may be related to differences in surgeons’ surgical proficiency and surgical methods (such as stripping the paravertebral muscle, and treatment of the intervertebral space).
Postoperative clinical function ODI, JOA and VAS scores are important indices to evaluate postoperative pain, functional recovery, and surgical efficacy [24, 25]. Tian et al.  conducted a short-term follow-up of more than 1 year for 20 patients with single-segment lumbar degenerative diseases who were dynamically fixed with the TTL system after decompression. The results showed that the JOA score and ODI index of the lumbar spine were significantly improved. Li et al.  used an isobar system to treat 37 patients with lumbar stenosis, disc herniation and instability. During the 24-month follow-up, the ODI and VAS scores changed most significantly at 3 months after the operation. Then, the ODI tended to stabilize, and the VAS score had improved significantly at the last follow-up. These studies show that the application of the isobar system in nonfusion surgery can significantly improve postoperative lumbar function and reduce pain symptoms. At present, most studies have shown that applying isobar TTL in nonfusion surgery can significantly improve postoperative lumbar function and reduce pain symptoms, but whether this technique can achieve the same or an even better effect than traditional PLIF is uncertain. The meta-analysis results of this study show no significant difference in ODI, JOA and VAS scores between isobar nonfusion and PLIF at the same follow-up time, indicating that isobar nonfusion can improve postoperative lumbar function and reduce pain similar to PLIF, but the findings do not reflect its advantages in this regard. The main reasons for our results may be as follows. First, low back pain relief and lumbar function recovery mainly depend on complete decompression of the affected nerve roots, but not on the fusion of the responsible segments. Second, the follow-up time included in the study was short (12 months), and medium- and long-term follow-ups may better reflect the advantages of nonfusion.
Imaging indices, and postoperative ASD cases, postoperative surgical segment ROM, adjacent segment ROM and lumbar ROM are important factors for disease recurrence and ASD development. They are also the main research focus with respect to the clinical efficacy of isobar nonfusion surgery. Zhang et al.  found that isobar nonfusion surgery can retain ROM in the surgical segment to a certain extent, prevent an increase in compensatory ROM in adjacent vertebrae, and maintain the normal mechanical environment of the lumbar spine. Gao et al.  obtained the same results and found that after isobar fixation, the compensatory ROM of adjacent segments decreased significantly compared with that in the PLIF group. However, some scholars have reached different conclusions through follow-ups. Fu et al.  performed single-segment nonfusion surgery in 36 patients, and the Pfirrmann level of the intervertebral disc increased 2 years after the operation, in the surgical segments or adjacent segments. Therefore, they concluded that isobar nonfusion surgery cannot effectively prevent the occurrence of ASD. A retrospective study  of 20 patients with lumbar degenerative diseases, which also found that isobar nonfusion surgery had no significant effect on the ROM of adjacent segments, and two cases of ASD were noted. The results of a retrospective analysis by Li et al. also showed that during 2-year follow-up, 14 patients suffered ASD, 3 of whom required reoperation . Some scholars who disagree with this view believe that degeneration of adjacent segments is the result of the natural development of lumbar diseases and cannot be simply attributed to nonfusion [32, 33]. Regarding the influence of lumbar ROM, 22 patients had lumbar degenerative diseases for one year, and Qian et al. had no significant difference between the ROM (3.46 ± 1.02) ° of the preoperative surgical segment and the ROM (2.25 ± 0.79)° after the operation, indicating that isobar nonfusion can retain the activity of the surgical segment to a certain extent .
Although the research included in this meta-analysis lacks clinical RCTs for ROM analysis of adjacent segments, the two indices of postoperative surgical segment ROM and lumbar ROM can reflect the normal biomechanical structure of the spine. Therefore, these two indices can reflect the protective effect on adjacent vertebrae. Meta-analysis showed that isobar nonfusion surgery could effectively preserve the surgical segments and lumbar ROM compared with PLIF. Theoretically, retaining both activities may delay degeneration of adjacent vertebral bodies. We analysed the possible reasons as follows. First, the elastic coefficient of the isobar system is similar to that of the normal spine, the biomechanical environment of the reconstructed spine is close to normal, normal stress conduction is restored, and degeneration of the intervertebral disc is prevented [35,36,37]. Moreover, isobar nonfusion surgery can eliminate the abnormal range of motion of surgical segments, while the microjoint of the isobar retains part of the ROM of the surgical segment, to reduce the increase in the compensatory ROM of adjacent segments, with no significant change in lumbar ROM .
Regarding postoperative ASD prevention, the results of this meta-analysis showed a significant difference between isobar nonfusion surgery and PLIF after approximately 12 months of follow-up. This study shows that the incidence of ASD after isobar nonfusion (1.22%) is significantly lower than that of PLIF (12.26%), indicating that isobar nonfusion can effectively prevent the occurrence of ASD in the short term. The reasons may be as follows. First, the activity of surgical segments is retained, which reduces the compensatory activity of adjacent segments is reduced. Second, the ROM of the lumbar spine is retained, and patients can carry out a wider range of rehabilitation training after surgery, which facilitates muscles recoverys. Strong muscle function is conducive to reducing the pressure between the lumbar vertebrae and effectively preventing ASD.
Limitations of this study
Our meta-analysis has the following limitations. First, published and unpublished manuscripts were not considered for inclusion when searching the literature. Second, the number of included studies was small, the number of cases was small, the follow-up time was short, and no subgroup analysis was performed, resulting in a confounding bias of the results. Moreover, other factors affecting the choice of clinical operation methods were not considered, such as operation costs, and disease severity. Third, the ROM of the lumbar spine may change significantly with an increase in surgical segments. Due to the lack of comparison between single-segment and multisegmental isobar nonfusion in the included studies, we did not study the effect of surgical segments on the prognoses of the two groups. Finally, the systematic evaluation included only the surgery duration, intraoperative bleeding, VAS scores for lower limb and low back pain, the ODI, the ROM of postoperative surgical segment and the lumbar spine, and the incidence of postoperative ASD. More imaging indices failed to be systematically evaluated due to the lack of original data.
Current evidence shows that isobar nonfusion and PLIF have the same effect in improving postoperative VAS, ODI and JOA scores. However, isobar nonfusion has obvious advantages over PLIF in shortening the surgery duration and reducing intraoperative bleeding. At the same time, isobar nonfusion can effectively preserve the ROM of the surgical segment and lumbar spine, which is of great significance for patients’ postoperative functional exercise and daily life. As a mature lumbar nonfusion technology, isobar nonfusion has achieved satisfactory clinical efficacy in short-term follow-ups within 2 years, but randomized controlled trials for spanning more than 2 years are still lacking. Therefore, the medium- and long-term efficacy of this operation must be further confirmed by more high-quality clinical studies.
Availability of data and materials
All data generated or analysed during this study are included in this published article and its supplementary information files.
Lumbar degenerative diseases
Posterior lumbar interbody fusion
Randomized controlled trials
Japanese Orthopaedic Association
Visual Analogue Scale
Low back pain
Oswestry Disability Index
Adjacent segment degeneration
Preferred Reporting Items for Systematic Reviews and Meta-Analyses
Range of motion
China National Knowledge Infrastructure
Huang RC, Girardi FP, Lim MR, et al. Advantages and disadvantages of nonfusion technology in spine surgery. Orthop Clin N Am. 2005;36(3):263–9. https://doi.org/10.1016/j.ocl.2005.02.006.
Lee SE, Park SB, Jahng TA, et al. Clinical experience of the dynamic stabilization system for the degenerative spine disease. J Korean Neurosurg Soc. 2008. https://doi.org/10.3340/jkns.2008.43.5.221.
Chou D, Lau D, Skelly A, et al. Dynamic stabilization versus fusion for treatment of degenerative spine conditions. Evid Based Spine Care J. 2011;2(3):33–42. https://doi.org/10.1055/s-0030-1267111.
Shu-Fen S, Meng-Shan W, Wen-Ting Y, et al. Effects of lumbar fusion surgery with ISOBAR devices versus posterior lumbar interbody fusion surgery on pain and disability in patients with lumbar degenerative diseases: a meta-analysis. J Invest Surg. 2018. https://doi.org/10.1080/08941939.2018.1472318.
Moher D, Liberati A, Tetzlaff J, et al. Preferred reporting items for systematic reviews and meta-analyses: the PRISMA statement. PLoS Med 6:e1000097. Open Med. 2009, 3(3):e123–30. https://doi.org/10.1016/j.jclinepi.2009.06.005
Cumpston M, Li T, Page MJ, et al. Updated guidance for trusted systematic reviews: a new edition of the Cochrane Handbook for Systematic Reviews of Interventions. Cochrane Database Syst Rev. 2019;10:ED000142. https://doi.org/10.1002/14651858.ED000142.
Higgins JP, Altman DG, Gøtzsche PC, Jüni P, Moher D, Oxman AD, Savovic J, Schulz KF, Weeks L, Sterne JA; Cochrane Bias Methods Group; Cochrane Statistical Methods Group. The Cochrane Collaboration's tool for assessing risk of bias in randomized trials. BMJ. 2011;343:d5928. https://doi.org/10.1136/bmj.d5928
Yang Y, Hong Y, Liu H, et al. Comparison of clinical and radiographic results between isobar posterior dynamic stabilization and posterior lumbar inter-body fusion for lumbar degenerative disease: a four-year retrospective study. Clin Neurol Neurosurg. 2015;136:100–6. https://doi.org/10.1016/j.clineuro.2015.06.003.
Wen YF, Zhu LX, Min SX, et al. Comparative analysis of clinical efficacy of isobar TTL semi rigid dynamic internal fixation and rigid internal fixation in the treatment of lumbar degenerative diseases. Chin J Orthop Surg. 2011;19(05):373–7. https://doi.org/10.1111/j.1759-6831.2010.00112.x.
Li ZH, Wang SY, Fu Q, et al. Application of ISOBAR dynamic stabilization system in treatment of degenerative lumbar disease. Chin J Bone Joint Inj. 2011;26(11):973–6.
Xu HD, Fu Q. Efficacy analysis of posterior isobar non fusion internal fixation system in the treatment of lumbar degenerative diseases. Chin J Orthop Surg. 2013;21(11):1149–52. https://doi.org/10.3977/j.issn.1005-8478.2013.11.19.
Liu YB, Fu Q. Repair of lumbar disc herniation with posterior isobar non fusion internal fixation system: it is more advantageous to restore lumbar mobility. China Tissue Eng Res. 2015;19(13):2051–6. https://doi.org/10.3969/j.issn.2095-4344.2015.13.016.
Feng XF, Zhang K, Tu Q, et al. Early efficacy of isobar TTL dynamic fixation in the treatment of multi-level lumbar degenerative diseases. Chin J Clin Basic Res Orthop. 2017. https://doi.org/10.3969/j.issn.1674-666X.2017.05.003.
Ji ZS, Yang H, Yang YH, et al. Analysis of clinical effect and radiographic outcomes of Isobar TTL system for two-segment lumbar degenerative disease: a retrospective study. BMC Surg. 2020. https://doi.org/10.1186/s12893-020-0680-8.
Fritzell P, Hagg O, Nordwall A. Complications in lumbar fusion surgery for chronic low back pain: comparison of three surgical techniques used in a prospective randomized study. A report from the Swedish Lumbar Spine Study Group. Eur Spine J. 2003;12(2):178–89. https://doi.org/10.1007/s00586-002-0493-8.
McNally DS, Shackleford IM, Goodship AE, et al. In vivo stress measurement can predict pain on discography. Spine (Phila Pa 1976). 1996;21(22):2580–7. https://doi.org/10.1097/00007632-199611150-00007.
Barrey CY. Dynamic instrumentation for fusion with isobar ttl™: Biomechanical and clinical aspects. ArgoSpine News J. 2010;22:62–6. https://doi.org/10.1007/s12240-010-0014-2.
Zhang XZ, Wang QF, Zhao ZY, et al. Efficacy and postoperative fusion rate of isobar TTL system in the treatment of lumbar degenerative diseases. China Bone Inj. 2019;32(10):914–8. https://doi.org/10.3969/j.issn.1003-0034.2019.10.008.
Bao ZH, Yang HL, Zhang ZM, et al. 3-year follow-up study of nucleus pulposus removal combined with dynamic fixation in the treatment of single segment lumbar disc herniation with segmental instability. Chin J Spine Spinal Cord. 2014;24(12):1085–9. https://doi.org/10.3969/j.issn.1004-406X.2014.12.06.
Wang H, Lv B. Comparison of clinical and radiographic results between posterior pedicle-based dynamic stabilization and posterior lumbar intervertebral fusion for lumbar degenerative disease: a 2-year retrospective study. World Neurosurg. 2018;114:e403–11. https://doi.org/10.1016/j.wneu.2018.02.192.
Korovessis P, Papazisis Z, Koureas G, et al. Rigid, semirigid versus dynamic instrumentation for degenerative lumbar spinal stenosis: a correlative radiological and clinical analysis of short-term results. Spine (Phila Pa 1976). 2004;29(7):735–42. https://doi.org/10.1097/01.BRS.0000112072.83196.0f.
Hrabalek L, Wanek T, Adamus M. Treatment of degenerative spondylolisthesis of the lumbosacral spine by decompression and dynamic transpedicular stabilisation. Acta Chir Orthop Traumatol Cech. 2011;78(5):431–6. https://doi.org/10.3928/01477447-20110826-09.
Moon KY, Lee SE, Kim KJ, et al. Back muscle changes after pedicle based dynamic stabilization. J Korean Neurosurg Soc. 2013;53(3):174–9. https://doi.org/10.3340/jkns.2013.53.3.174.
Tian YX, Bao ZH, Zou J, et al. Short term effect of single segment isobar TTL system dynamic internal fixation in the treatment of lumbar degenerative diseases. China Tissue Eng Res. 2018;22(07):1020–5. https://doi.org/10.3969/j.issn.2095-4344.0052.
Rong X, Dou QY, Li XL, et al. Posterior dynamic stabilization with direct pars repair via wiltse approach for the treatment of lumbar spondylolysis: the application of a novel surgery. Spine (Phila Pa 1976). 2016;41(8):E494–502. https://doi.org/10.1097/BRS.0000000000001295.
Li Z, Li F, Yu S, et al. Two-year follow-up results of the isobar TTL semi-rigid rod system for the treatment of lumbar degenerative disease. J Clin Neurosci. 2013;20(3):394–9. https://doi.org/10.1016/j.jocn.2012.02.043.
Li Z, Shu X, Yang D, et al. Effectiveness of ISOBAR TTL semi-rigid dynamic stabilization system in treatment of lumbar degenerative disease. Zhong guo Xiu Fu Chong Jian Wai Ke Za Zhi. 2012;26(9):1066–70.
Zhang ZM, Jin DD, Chen JT. Comparative study of dynamic fixation with rigid fixation in the management of degenerative lumbar spondylosis. Zhong hua Wai Ke Za Zhi. 2008;46(5):346–9. https://doi.org/10.3321/j.issn:0529-5815.2008.05.008.
Gao J, Zhao W, Zhang X, et al. MRI analysis of the ISOBAR TTL internal fixation system for the dynamic fixation of intervertebral discs: a comparison with rigid internal fixation. J Orthop Surg Res. 2014;9(1):43. https://doi.org/10.1186/1749-799X-9-43.
Fu L, France A, Xie Y, et al. Functional and radiological outcomes of semi-rigid dynamic lumbar stabilization adjacent to single-level fusion after 2 years. Arch Orthop Trauma Surg. 2014;134(5):605–10. https://doi.org/10.1007/s00402-014-1961-4.
Yao XQ, Jiang H, Cheng YG, et al. Medium and long term follow-up results of isobar TTL system in the treatment of lumbar degenerative diseases. Chin J Orthop Surg. 2017;25(03):199–203. https://doi.org/10.3977/j.issn.1005-8478.2017.03.02.
Kumar MN, Baklanov A, Chopin D. Correlation between sagittal plane changes and adjacent segment degeneration following lumbar spine fusion. Eur Spine J. 2001;10(4):314–9. https://doi.org/10.1007/s005860000239.
Chou WY, Hsu CJ, Chang WN, et al. Adjacent segment degeneration after lumbar spinal posterolateral fusion with instrumentation in elderly patients. Arch Orthop Trauma Surg. 2002;122(1):39–43. https://doi.org/10.1007/s004020100314.
Qian JL, Bao ZH, Li X, et al. Short-term therapeutic efficacy of the isobar TTL dynamic internal fixation system for the treatment of lumbar degenerative disc diseases. Pain Phys. 2016;19(6):E853–61.
Chamoli U, Diwan AD, Tsafnat N. Pedicle screw-based posterior dynamic stabilizers for degenerative spine: in vitro biomechanical testing and clinical outcomes. J Biomed Mater Res A. 2014;102(9):3324–40. https://doi.org/10.1002/jbma.34986.
Liu JH, Jin AM, Duan Y, et al. Three-dimensional finite element analysis and comparison of isobar TTL semi rigid internal fixation system and USS rigid internal fixation system. J Second Milit Med Univ. 2013;34(04):416–20. https://doi.org/10.3724/SP.J.1008.2013.00416.
Lv JH, Tang ZH, Chen K, et al. Comparison of angular displacement and stress of lumbar intervertebral disc adjacent to semi-rigid and rigid internal fixation. China Tissue Eng Res. 2016;20(09):1275–81. https://doi.org/10.3969/j.issn.2095-4344.2016.09.009.
Tang HT, Zhao WD, Wu XJ. Effect of isobar TTL semi rigid dynamic fixation system on intervertebral load of lumbar fixed segments. Chin J Exp Surg. 2015;32(1):126–8. https://doi.org/10.3760/cma.j.issn.1001-9030.2015.01.044.
In this paper, the research is sponsored by the Horizontal Subject “effect of biomimetic mineralized collagen artificial bone in the treatment of spinal diseases and fractures”.
Ethics approval and consent to participate
This study is a meta-analysis and does not require ethical approval and consent to participate.
Consent for publication
This research is a meta-analysis of other studies and does not contain any personal information and data, such as name, gender, age, images, or videos, so no individual consent is required.
The authors declare that they have no competing interests in this section.
