  • Research article
  • Open Access

Clavicular non-union treated with fixation using locking compression plate without bone graft

  • 1,
  • 1Email author,
  • 1,
  • 1 and
  • 1
Journal of Orthopaedic Surgery and Research201813:317

https://doi.org/10.1186/s13018-018-1015-7

  • Received: 13 November 2017
  • Accepted: 21 November 2018
  • Published:

Abstract

Background

The articles that have reported on the size at which a segmental defect of clavicular non-union requires bone grafting are scarce. This study evaluated the functional and radiologic results of fixation by locking compression plate (LCP) without bone graft when the defect size is less than 2 cm following bone sclerosis removal for the treatment of clavicular non-union.

Methods

The study included 17 patients with mid-shaft clavicular non-union. All patients underwent bone sclerosis resection and fixation using LCP without bone graft. The patients were evaluated preoperatively, and after a minimum of 24 months (mean, 44.47 months; range, 24 to 60 months) postoperatively in terms of the disabilities of the arm, shoulder and hand (DASH) score, the Constant-Murley score, and radiography.

Results

In this study, no patients were lost to follow-up. The mean DASH score improved from 38.76 ± 7.76 (31.00–46.52) points preoperatively to 19.88 ± 7.18 (12.70–27.06) points 2 years postoperatively (P < 0.01). The mean Constant-Murley score improved from 41.59 ± 8.81 (32.78–50.40) points preoperatively to 75.47 ± 13.50 (61.97–88.97) points 2 years postoperatively (P < 0.01). Radiographs revealed fracture union in all patients. No correlations between the defect size and the postoperative Constant-Murley score or between the defect size and the postoperative DASH score were found based on Pearson tests. No complications, particularly acromioclavicular joint complications and sternoclavicular joint complications, were observed.

Conclusions

In conclusion, we can suggest, from the findings of our study, that bone sclerosis resection and fixation using LCP without bone graft is effective for the treatment of clavicular non-union involving a gap of less than 2 cm and has a low rate of complications.

Keywords

  • LCP
  • Clavicular non-union
  • Bone graft

Introduction

Clavicle fractures account for up to 5 to 10% of all fractures [1]. Clavicular non-union is a rare complication and has been reported in between 0.1 and 24% of patients following non-operative treatment [25]. It can be disabling and presents mainly with pain and limitations of shoulder movement [68]. Contributing factors to clavicular non-union include clavicle shortening > 15–20 mm, female sex, fracture comminution, fracture displacement, older age, severe initial trauma, and unstable lateral fractures (Neer type II) [8]. Schnetzke et al. studied 58 patients with variations in the included types of clavicle fracture healing complications and reported rates of 33% atrophic, 20% hypertrophic, 7% mixed type, and 40% delayed fracture healing complications [9].

Symptomatic non-unions including functional shoulder impairment and pain are usually treated surgically. Surgical methods include resection of part of the clavicle or the entire clavicle and clavicle reconstruction. With the development of implant technology for anatomic reconstruction, clavicle resection has been abandoned. Currently, the general principles for the treatment of clavicular non-unions are the same as those for other fracture sites, i.e., bone union is achieved with fracture site reduction, stable fixation, and bone grafting transplantation from the site itself or the iliac crest [10, 11]. Fixation is often internal and must provide stability. Many authors recommend the use of bone grafts [2, 9, 10, 12]. The disadvantages of bone graft include the limited volume of available bone [13], increased operative time and blood loss [14], and donor-site morbidity [15, 16]. The articles that have reported on the size at which a segmental defect of the clavicular non-union requires bone grafting are scarce.

In recent years, we have treated non-unions of the clavicle with defects less than 2 cm (after bone sclerosis resection) directly using compressive locked-plate internal fixation without bone graft. Based on the evaluation of postoperative symptom relief, functional improvement of the shoulder, clavicle healing, and complications, we hypothesized that direct internal fixation using a LCP without bone graft for the treatment of clavicular non-unions would result in reduced pain levels, improved function of the shoulder, and promoted clavicular non-union but without complications.

Materials and methods

A prospective clinical study was designed. The inclusion criteria for the patients consisted of the following: clavicular non-union lasting more than 6 months, functional shoulder impairment and pain, and defect after bone sclerosis removal of less than 2 cm. The exclusion criteria were the following: clavicular non-union lasting less than 6 months, no functional shoulder impairment and pain, and defect after bone sclerosis removal of more than 2 cm, infected non-unions, tumors, or pathologic fractures, patients with cancer or compromised immune systems, patients refusing surgical treatment. Between January 2009 and June 2014, 17 patients (12 men and 5 women; age range, 13 to 74 years; mean age, 38.5 years; 9 left side and 8 right side; 12 initially treated with non-operative treatment and 5 treated with fracture reduction and internal fixation) with clavicular non-union were included in this study. On standard A-P X-ray of the clavicle, 8 of the non-unions were atrophic (no osteogenesis) and 9 were hypertrophic. Non-union and non-union type was defined by the lack of both periosteal and endosteal healing responses and bridging of the fracture after 6 months. In cases of doubt, a CT scan was performed to support or reject the diagnosis based on conventional radiographic images and clinical signs, such as pain and weakness. The demographic data, injury-surgery time, clavicular non-union type, defect size of each patient, and initial treatment were recorded (Table 1). All patients reported shoulder pain and impairments of shoulder function. The preoperative radiographs revealed no other injuries. The operations and clinical follow-ups were conducted by two senior surgeons (K.T., X.T.). The defect sizes were measured after bone sclerosis resection.
Table 1

Patient details

Case no.

Age, years

Sex

Side

Time injury-surgery, months

Type

Defect size, cm

Initial treatment

1

52

F

R

9

H

1.1

C

2

45

M

R

18

H

0.9

S

3

37

M

R

17

H

1.6

C

4

44

F

R

11

H

2.0

C

5

42

M

L

34

H

1.4

S

6

59

F

L

25

A

1.1

C

7

31

M

L

52

A

0.6

C

8

13

M

R

7

H

0.7

C

9

27

F

L

11

H

0.8

S

10

47

M

L

10

A

1.4

C

11

16

M

R

28

H

1.4

C

12

41

M

L

18

A

1.6

S

13

26

M

R

21

A

1.3

C

14

74

M

L

35

A

0.9

S

15

31

F

R

7

A

1.3

C

16

27

M

L

27

A

1.6

C

17

42

M

L

7

H

1.0

C

F female, M male, L left, R right, A atrophy, H hypertrophy, C conservative, S surgery

Clinical evaluation

The disabilities of the arm, shoulder and hand (DASH) scores and the Constant-Murley scores were used to evaluate the symptoms and functional level of each patient before and a minimum of 24 months after surgery. All patients underwent an X-ray before and after a minimum of 24 months to observe fracture union after surgery.

Surgical technique

Under general anesthesia, the patient was placed in the supine position with a large bump placed between the scapula. A 6-cm incision was made along the clavicle anterosuperiorly, centered over the fracture site. A dissection was carefully performed to avoid dissecting the periosteum and any injury to the subclavian vessels or the anterior fibers of the brachial plexus, and the fracture position was fully exposed. An oscillating saw was used to remove bone sclerosis and/or the fracture callus until fracture end bleeding was observed and the fragments were smooth. The medullary canal was opened via Kirschner wire perforation. A steel ruler was used to measure the gap size. If the defect size was within 2 cm, the fragments were aligned and immobilized with a pointed reduction clamp and fixed with a LCP (Synthes, Switzerland). The LCP was placed on the anterosuperior side of the clavicle. The anatomic reduction and screw lengths were confirmed by fluoroscopy. If the defect was greater than 2 cm, bone grafting was used, and the patient was excluded from these analyses. The wounds were closed in a routine manner, and sterile compression dressings were applied.

Postoperative rehabilitation

The operated extremity was placed in a sling for comfort. Pendulum (also known as Codman) exercises were taught to the patient, and the patient was encouraged to use the arm but to avoid heavy lifting, pushing, or pulling. Full return to activities was allowed when fracture healing was present, which was typically at 2 to 3 months.

Statistics

The statistical analyses were performed using SPSS software version 13.0 (IBM, Armonk, NY). Paired-sample t tests and Mann-Whitney U tests were used to compare the DASH scores and Constant-Murley scores, respectively, before and after the procedures. Pearson tests were used to analyze the correlation between the defect size and the postoperative Constant-Murley scores or between the defect size and the postoperative DASH scores. The level of significance was set at 95%, and P < 0.05 was considered significant.

Results

According to the previously described criteria, 17 patients were included and treated with fixation using a LCP without bone graft; 3 patients were excluded due to that the defect size was more than 2 cm. The fracture sites of 9 patients were hypertrophy and 8 were atrophy. The mean follow-up time was 44.47 ± 14.55 (24–60) months. No patients were lost to follow-up. The mean DASH score improved from 38.76 ± 7.76 (31.00–46.52) points preoperatively to 19.88 ± 7.18 (12.70–27.06) points 2 years postoperatively (P < 0.01). The mean Constant-Murley score improved from 41.59 ± 8.81 (32.78–50.40) points preoperatively to 75.47 ± 13.50 (61.97–88.97) points 2 years postoperatively (P < 0.01) (Table 2, Fig. 1). No correlations between the defect size and the postoperative Constant-Murley score or between the defect size and the postoperative DASH score were found based on Pearson tests (Fig. 2). The radiographs revealed fracture union in all patients in the study group (Fig. 3). No complications, particularly acromioclavicular joint complications and sternoclavicular joint complications, were observed.
Table 2

Clinical evaluations of the patients

Case

no.

DASH score

Constant-Murley score

Union or not

Follow-up time

Complications

Pre-op

Post-op

Pre-op

Post-op

1

27

9

55

96

Union

24

None

2

29

8

54

98

Union

48

None

3

30

11

54

94

Union

24

None

4

32

12

53

90

Union

60

None

5

33

20

47

79

Union

60

None

6

35

20

46

79

Union

24

None

7

35

16

43

77

Union

60

None

8

35

15

43

77

Union

36

None

9

39

21

40

74

Union

60

None

10

38

20

42

74

Union

48

None

11

41

24

36

72

Union

24

None

12

43

25

35

72

Union

36

None

13

45

23

33

71

Union

48

None

14

45

25

34

64

Union

60

None

15

49

28

32

57

Union

48

None

16

51

33

31

55

Union

36

None

17

52

28

29

54

Union

60

None

Mean

38.76 ± 7.76

19.88 ± 7.18

41.59 ± 8.81

75.47 ± 13.50



44.47 ± 14.55


Fig. 1
Fig. 1

After the operations, the DASH scores significantly decreased (P < 0.01) in all 17 patients, and the Constant-Murley scores significantly increased (P < 0.01) in all patients

Fig. 2
Fig. 2

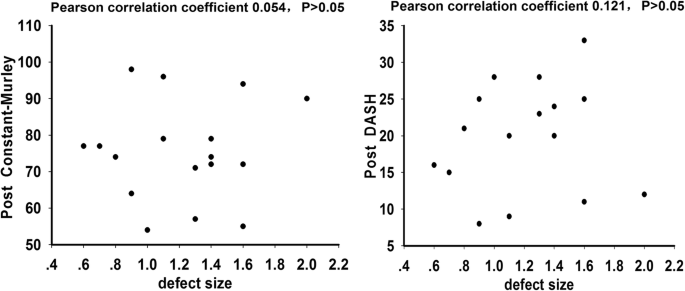

The Pearson correlation coefficients between defect size and the postoperative Constant-Murley score was 0.054, and the Pearson correlation coefficient between the defect size and postoperative Constant-Murley score was 0.121. Defect size was not correlated with the postoperative Constant-Murley score or the postoperative DASH score (P > 0.05)

Fig. 3
Fig. 3

a Pre-operative radiograph of a clavicle fracture non-union (atrophic) in a 31-year-old female. b Immediate post-operative radiograph showing fixation with three screws on either side of the fracture. c One year after surgery, the internal fixation devices were removed. The final follow-up radiograph showing fracture union

Discussion

There is a general agreement that fracture site reduction and stable fixation is a key procedure for promoting clavicle union. But there is no agreement in published studies on the requirement for bone substitutes. Most authors recommended bone grafting [2, 10, 1719]. One study reported union rates of 71% with the use of bone graft in a series of 21 clavicular non-unions treated after the first surgery. Six complications required a revision procedure: three for infection and three for mechanical failure [10]. A retrospective study conducted by Schnetzke et al. revealed that bone graft transplantation can result in a significantly shorter time to bone consolidation, better clinical results in terms of the DASH and Constant-Murley scores, and lower revision rates compared with non-bone-graft transplantation [9]. However, it did not provide the defect size after preparing of grafting group and no grafting group. Harvesting of bone graft in itself can have a high morbidity rate, up to 30% in one study [20]. This includes graft site infection, pain, and fracture.

By contrast, others suggest that bone grafting may be unnecessary in every case of clavicular non-union. Some suggested bone grafts should be used only with atrophic non-unions [2123]. Baker et al. reported on a series of patients with clavicular non-unions that were fixed with a pre-contoured locking plate and no bone graft. All of these patients returned to work and regular sports activities, and this finding is consistent with our series [21]. However, it did not provide information regarding the defect lengths of all patients after bone sclerosis removal, and it did not analyze the extent of clavicle shorting, which did not affect clinical outcomes. In the present study, the defect size of 17/20 was less than 2 cm, all 17 patients achieved pain relief and functional improvement, and the X-rays revealed clavicle fracture healing in all patients. No correlations between the defect size and the postoperative Constant-Murley score or between the defect size and the postoperative DASH score were found.

Matsumura et al. suggested in a biomechanical study that a clavicle shortening of 10% or more alters the scapula. Moreover, this author reported that the mean length of the clavicle was 158.1 ± 7.0 (151.1–165.1) mm (range, 144.0–176.4 mm) [24]. However, in the present study, a cutoff point was set for the defect of 2 cm, which slightly exceeds the 10% of the mean length of the clavicle reported by Matsumura, and clavicle shorting below 2 cm did not affect shoulder function. Maybe it is because Matsumura’s results were based on a cadaveric study.

Currently, there is no consensus regarding the optimal fixation devices for clavicular non-union. In a comparison of dynamic compression plating (DCP) in 16 patients and low-contact dynamic compression plating (LC-DCP) techniques in 17 patients, Kabak et al. reported that the use of LC-DCP is a more reliable treatment method than the use of the DCP because the LC-DCP has several technical advantages that make it an ideal implant for satisfying the unique anatomic and biomechanical requirements of the internal fixation of clavicular non-union [25]. In the present study, LCP was used to fix clavicular non-unions and obtained good outcomes. The LCP offers a low-profile solution for the plating of the clavicle. The titanium plate offers strength, with a rounded profile and a low-profile screw-plate interface, which is known to promote early callus formation [23].

There are several limitations to our study. First, the sample size was relatively small. The calculation of accurate cutoff point of defect size which helps to decide whether or not to transplant bone graft needs a bigger size sample and to conduct ROC curve analysis. Second, the follow-up time was relatively short. Third, there is no control group. Thus, additional high-level evidence like RCT is needed.

Conclusions

In conclusion, we can suggest, from the findings of our study, that bone sclerosis resection and fixation using LCP without bone graft is effective for the treatment of clavicular non-union involving a gap of less than 2 cm and has a low rate of complications.

Abbreviations

DASH:

Disabilities of the arm, shoulder and hand

DCP:

Dynamic compression plating

LC-DCP:

Low-contact dynamic compression plating

LCP:

Locking compression plate

Declarations

Acknowledgements

We acknowledge the assistance of investigators and all subjects for participants in this study.

Funding

This work was supported by the National Natural Science Foundation of China (Grant No. 81601943).

Availability of data and materials

All data and materials were in full compliance with the journal’s policy.

Authors’ contributions

All surgical procedures were carried out by KT and XT. KT and WC designed this study. WC, CsY, and BhZ participated in the patient selection, investigation on the outpatient clinic and radiographic assessment, literature search, and data monitoring. WC and XT carried out the statistical analysis and manuscript writing. All authors have read and approved the final manuscript.

Ethics approval and consent to participate

The study was approved by the Clinical Academic Committee of the Third Military Medical University Southwest Hospital and was approved by all the members. The study was conducted in compliance with the Helsinki Declaration. All patients eventually provided their informed consent at enrollment.

Consent for publication

All patients enrolled into the study agree to the use of patients’ data for research.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Department of Orthopedic Surgery, Southwest Hospital, Third Military Medical University, Chongqing, 400038, China
