Sinus tarsi approach versus extensile lateral approach for displaced intra-articular calcaneal fracture: a meta-analysis of current evidence base
© The Author(s). 2017
Received: 24 December 2016
Accepted: 4 March 2017
Published: 14 March 2017
The extensile lateral approach (ELA) has been widely performed for displaced intra-articular calcaneal fractures (DIACFs), and wound complications remain a significant problem. As a minimal incision technique, the sinus tarsi approach (STA) was designed to overcome this disadvantage. There were already many reports about this approach but the conclusions were not completely consistent. Based on the current evidence, we performed this meta-analysis to compare the STA with ELA in the management of DIACF and expected to draw a certain and meaningful conclusion.
All potentially relevant randomized controlled trials (RCTs) and cohort studies (CSs) were searched in the databases of PubMed, Embase, Cochrane Central Register of Controlled Trials (CENTRAL) and ClinicalTrial.gov. The desirable outcomes including wound complications, excellent and good rate, secondary surgery rate and Böhler’s angle were extracted. RCT studies were assessed using the Risk of Bias Tool recommended by the Cochrane Collaboration, and cohort studies were evaluated using the Newcastle–Ottawa Scale. The data of RCTs and cohorts were pooled respectively using the fixed-effect model or random-effect model. Mean differences with 95% confidence intervals (CIs) were calculated for continuous data, and relative risks (RRs) with 95% CIs were calculated for dichotomous data. Statistical heterogeneity was assessed with the Q test and I 2 . Sensitivity analysis was developed to assess the reliability of pooled results.
Seven studies including two RCTs and five CSs were eligible for the meta-analysis. No matter RCTs or CSs, the pooled data all showed that STA group had a lower incidence of wound complications than that in the ELA group and no significant difference was found in excellent and good rate and the recovery of Böhler’s angle between the two groups. The CSs also showed that the STA group had a lower incidence of secondary surgeries than that in the ELA group.
Through a STA, we not only can reduce the problems in wound healing but also achieve nearly the same adequate restoration of DIACF along with the similar functional outcomes compared with through an ELA.
KeywordsCalcaneus Fracture STA ELA
Calcaneal fractures occur more often in young, active, persons performing manual labor while falling from a height and have a high socioeconomic impact. It is the most common fracture in the tarsal bones, accounting for 60% of all tarsal fractures  and approximately 2% of all fractures . It has been reported that about 75% of calcaneal fractures are displaced intra-articular calcaneal fractures (DIACFs) .
Whether a DIACF should be managed surgically or not (conservatively) remains controversial. But a basic conclusion supported by certain randomized controlled trials (RCTs) [4, 5] and even many meta-analysis [6–8] has been drawn that surgical treatment can better reconstruct the anatomy of the calcaneus but bring a higher incidence of complications compared with the nonsurgical treatment. Surgical treatment can also lower the subtalar fusion rate and offer protection against early subtalar arthrodesis in DIACFs [7, 9].
The current reports provide strong support for the use of the ELA for the internal fixation operation of DIACFs [10–13], and it is even considered to be a standard treatment for DIACFs because the ELA provides excellent exposure of the fracture and allows direct reduction . However, open reduction internal fixation (ORIF) through ELA comes with various complications among which the wound complications including edge necrosis, dehiscence, or deep infection should be paid particular attention. Many minimal invasive techniques were developed including percutaneous reduction internal fixation, external fixation and minimal incision techniques [15–19] to overcome this disadvantage. Percutaneous reduction internal fixation and external fixation were considered not able to accomplish and/or maintain the proper reconstruction of the fracture according to previous studies [15, 17, 20]. As a minimal incision technique, whether a sinus tarsi approach (STA) can aid to expose the fracture enough to achieve the adequate reconstruction of DIACF and meanwhile minimize the incidence of wound complications remains uncertain. Some RCTs [21, 22] and cohort studies (CSs) [23–27] were developed trying to answer this question, but the conclusions were not completely consistent. Based on the current evidence, we performed this meta-analysis to compare the STA with ELA for the management of DIACF and expected to draw a certain and meaningful conclusion for this question.
This meta-analysis was conducted and reported in adherence to Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) .
Study design and search methods
All published RCTs and CSs comparing STA with ELA for the management of DIACF were searched by two authors independently. PubMed, Embase, CENTRAL and ClinicalTrial.gov were searched for eligible reports. The search keywords were calcaneus, calcaneal, calcaneum, calcis, heel and hindfoot for study population; sinus tarsi, minimal, minimally, limited, mini, and small for test group; and extensile, extended, lateral, L-type, L-shaped, and conventional operation for control group. To find as many studies as possible, language, study design, publication status and date were not restricted in the search.
Studies meeting the following criteria were included: (1) Population: patients with DIACFs, closed, age older than 18 years, without previous calcaneal abnormalities or injuries (e.g. an infection or a tumour), co-existent foot injuries. (2) Interventions: reduction through a STA with the kind of fixation not cared. (3) Comparison: reduction through an ELA with the kind of fixation not cared. (4) Outcomes: studies that reported important postoperative outcomes, such as reduction quality, pain, function, or complications (at least one desirable outcome). (5) Study design: RCTs, prospective or retrospective CSs.
Data extraction and quality assessment
The desirable outcomes including wound complications, excellent and good rate, secondary surgery rate and Böhler’s angle were extracted. The characteristics of the eligible studies including publication date, study location, study design, demographic data (sample size, average age and gender ratio), average follow-up time and surgical approach were also extracted. The risk of bias in included RCT studies was assessed using the Risk of Bias Tool recommended by the Cochrane Collaboration . CSs were evaluated using the Newcastle–Ottawa Scale .
Data synthesis and analysis
Data were analyzed separately for RCTs and CSs. The meta-analysis was performed using RevMan, version 5.3, software, and p < 0.05 was considered to indicate statistical significance. Mean differences with 95% confidence intervals (CIs) were calculated for continuous data, and RRs with 95% CIs were calculated for dichotomous data. Statistical heterogeneity was assessed with the Q test and I 2 . Studies with an I 2 statistic of 25 to 50% were considered to have low heterogeneity, those with an I 2 statistic of 50 to 75% were considered to have moderate heterogeneity, and those with an I 2 statistic of >75% were considered to have a high degree of heterogeneity . If p > 0.1 and I 2 < 50%, a fixed-effect model was used; otherwise, a random-effect model was used. Sensitivity analysis was developed to assess the reliability of pooled results. When the data extracted was not appropriate to pool, it was presented using a narrative analysis.
Study selection process
Study characteristics and quality assessment
Patients analyzed (STA/ELA)
Sex ratio (M/F)
Mean age (year) (STA/ELA)
Missing data (%)
Basile et al.
Xia et al.
Wu et al.
Takasaka et al.
Kline et al.
Weber et al.
Yeo et al.
Risk of bias assessment of the RCTs
Random sequence generation
Blinding of participants and personnel
Blinding of outcome assessment
Incomplete outcome data
Basile et al.
Xia et al.
Risk of bias assessment of the CSs
Ascertainment of exposure
Outcome of interest
Assessment of outcome
Length of follow-up
Adequacy of follow-up
Wu et al.
Takasaka et al.
Kline et al.
Weber et al.
Yeo et al.
Results obtained when only RCTs data were pooled
Excellent and good rate
Results obtained when only data of CSs were pooled
Excellent and good rate
Four CSs [23–25, 27] reported the postoperative recovery of Böhler’s angle. Unfortunately, the data presented were not suitable to merge and we also failed to achieve the original data after contacting the main authors of these studies, but three of them [24, 25, 27] declared that they did not find any statistical significant difference between the STA and ELA group in the recovery of postoperative Böhler’s angle. Wu et al.  reported that the average postoperative Böhler’s angle was 28.51 (range 7–60) degrees in ELA group and 27.76 (range 9–43) degrees in STA group. The mean values were also very close.
According to the pooled data, the meta-analysis results of CSs were consistent with that of RCTs in wound complications, excellent and good rate and recovery of Böhler’s angle. The CSs also showed that the STA group had lower incidence of secondary surgeries than that in the ELA group. These findings indicates that through a STA, we not only can reduce the problems in wound healing but also achieve nearly the same adequate restoration of DIACF along with the similar functional outcomes compared with through an ELA.
Benefiting from excellent visualization and allowing access to manipulate and rigidly fix the fracture through direct reduction [36, 37], the ELA has been widely adopted in the treatment of DIACFs. However, this approach worsens the traumatic devascularisation of the central and anterior part of the lateral wall, as 45% of the calcaneal vascularity is derived from vessels entering at this site [38, 39]. Despite paying particular attention to delicate soft tissue management via the creation of full-thickness flaps and a “no touch” technique, the wound complications remain big troubles. Buckley et al.  showed a superficial wound complication of 17% and a deep infection rate of 5% in an operative group treated with open reduction and plate fixation through ELA. Howard et al.  reported an overall wound complication rate of 25% (57/226) on a retrospective review of 226 DIACFs. Folk et al.  reported 25% of wound complications in 190 patients with DIACFs. According to our meta-analysis results, the overall incidence of wound complications for the ELA group was 15.1% in RCTs and 16.5% in CSs which is consistent with the previous reports.
A STA is always made on a line from the tip of the lateral malleolus to the base of the fourth metatarsal with the length 3–5 cm. Advocators argued that it does not have the disadvantages of the ELA, as it lies in the internervous plane and respects soft tissue planes, leaving minimal space for a haematoma . Holmes et al.  described using a STA and internal screw fixation to treat DIACF, with no problems with wound dehiscence, osteomyelitis, or surgical wound infection. Hospodar et al.  reported on 16 DIACFs treated with ORIF through the STA using screws for fixation. They detected no major wound complications. Kikuchi et al.  reported using the STA and a one-third tubular plate for 22 DIACFs. Their rate of superficial infection was 13.6% (3 of 22), no deep infections developed. The pooled data of this meta-analysis showed that the overall wound complication rate for the STA group was 0% in RCTs and 2.7% in CSs, which was also similar with the reported data.
This meta-analysis already proved that surgeries for DIACF through STA obviously reduce the risk of wound complications compared with through ELA, but whether a small incision about 3–5 cm long as the STA is enough for visualization to achieve adequate restoration of the DIACF may arise as a new question. This could be a serious problem because evidence from published data supports the concept that anatomic reduction and stable fixation of DIACFs will lead to the best possible outcomes .
For this question, many researchers presented their answers. Basile et al.  pointed out that the STA enables direct reconstruction of the posterior facet and anterior process, percutaneous reduction of the posterior tuberosity and strong fixation of the fracture with plate and screws despite limited exposure. Their results also showed no statistically significant differences in the quality of reduction (posterior facet and calcaneocuboid joint congruency, posterior tuberosity alignment) between the two groups. Wu et al.  described that a small lateral incision through the sinus tarsal permits a direct visualization of the articular surface, which allows an accurate reduction. Their recovery of Böhler’s angle was also similar between the two groups. Kline et al.  concluded that the minimally invasive STA for the reduction and fixation of DIACFs is safe and effective. No difference could be shown in their recovery of Böhler and Gissane angle between the two groups. Despite not providing the recovery of calcaneal angles, Weber et al.  described that the STA offers a window large enough to reduce and fix the joint and to control reduction of the tuberosity of the calcaneum. Loss of reduction of 2 mm or more of height, width or joint congruity or loss of more than 5° of Böhler’s angle did not occur in any patient in their groups. The data presented in our meta-analysis were also consistent with the abovementioned reports.
With the decrease of incidence of wound complications and equally adequate reconstruction of the fracture, equally good or better functional outcomes can be expected. Our meta-analysis results completely confirmed this supposition. Four cohorts [23, 24, 26, 27] in the present study all used the AOFAS score for the evaluation of excellent and good rate, and no significant difference was found between the two groups. Although the two RCTs adopted different evaluation methods for the functional outcomes, we thought the results were comparable only with regard to the excellent and good rate.

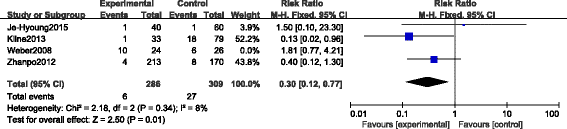

From the pooled data of cohort studies, we also found that the incidence of secondary surgeries in the STA group was significantly lower than that in the ELA group. First, we attribute the improvement to the lower incidence of wound complications. Fewer wound complications signify fewer follow-up therapies including secondary surgeries. Second, through a STA, we always implant fewer hardwares than through an ELA. Fewer hardwares may disturb the surrounding bone and soft tissue less. So, the rate of the symptomatic hardware removal and final subtalar arthrodesis for the traumatic arthritis is lower.
This meta-analysis has its own defects. First, the chief limitation of this study is that there are not enough RCT studies for the research. To increase the authenticity and reliability of the results, we included some high-quality CSs which would bring some methodological biases unavoidably. To minimize these biases, we pooled the data of RCTs and cohorts respectively, and the results were also analyzed respectively. Second, the different internal fixations may be the main confounding factor. Between the experimental group and control group, except the different surgical approaches, the hardware used for fixation is also different in some including studies. For example, some investigators used plate fixation in the ELA group but screw fixation in the STA group. Third, different researchers performed different evaluation methods and different durations of follow-up which may limit the accuracy of this study. So, more high-quality RCTs and high-level evidences are expected to give us more reliable guidance.
Nevertheless, this study already drew a basic conclusion that through a STA, we not only can reduce the problems in wound healing but also achieve nearly the same adequate restoration of DIACF along with the similar functional outcomes compared with through an ELA.
American Orthopaedic Foot and Ankle Society
Cochrane Central Register of Controlled Trials
Displaced intra-articular calcaneal fracture
Extensile lateral approach
Open reduction internal fixation
Preferred reporting items for systematic reviews and meta-analyses
Randomized controlled trial
Sinus tarsi approach
All authors have no relevant financial relationships to disclose.
Availability of data and materials
All data generated or analyzed during this study are included in this published article and available from the corresponding author on a reasonable request.
HY and TL designed this study. YX and GH searched the databases for the including studies. GH extracted the data and YX checked it. LL and JZ analyzed the data. HY drafted the manuscript, and TL repeatedly revised it. All authors read and approved the final manuscript.
The authors declare that they have no competing interests.
Consent for publication
Ethics approval and consent to participate
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.
